FPV Camera with Transmitter

$62.00
Loading reviews...

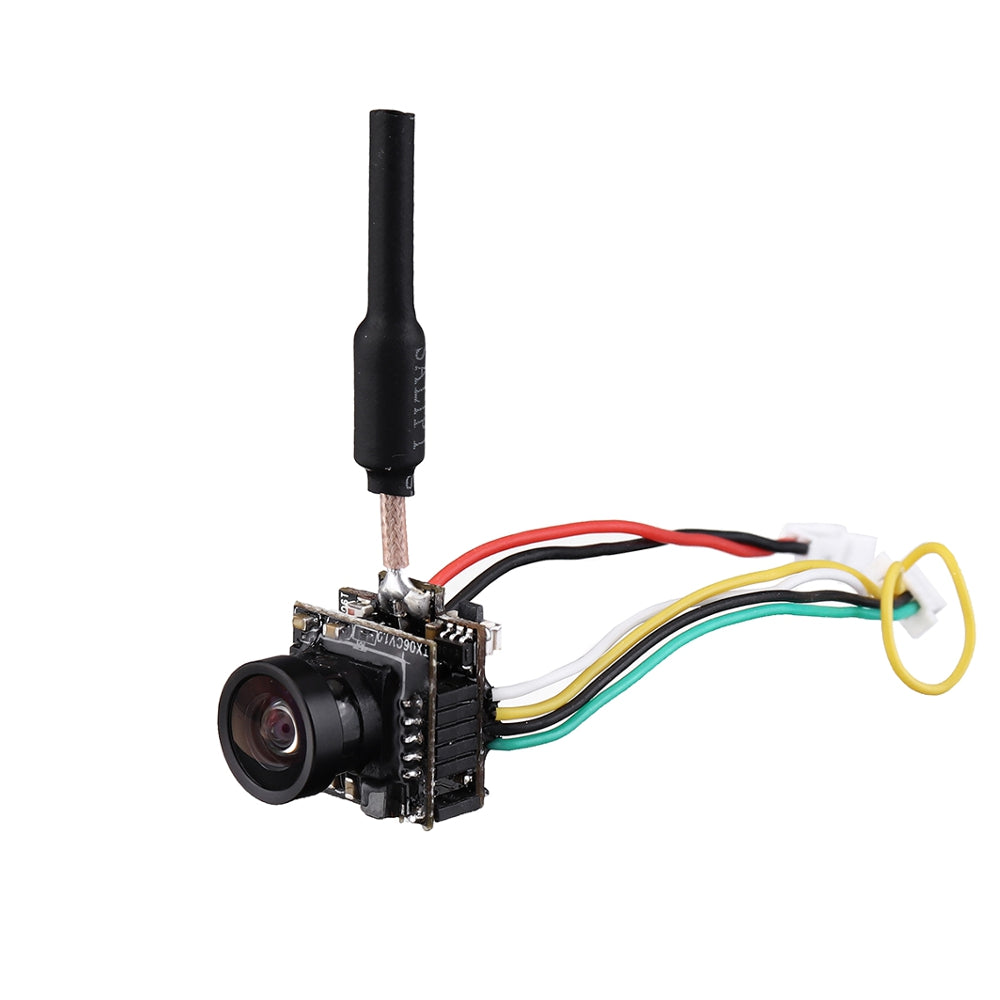

This is a micro-sized FPV camera with a tiny 5.8GHz VTX attached. Even though it's micro-sized, it packs a 1/3" CMOS sensor at 1200TVL. Other features global WDR, two levels of DNR, and an easy to press button not commonly found on micro VTXs. All of this comes together to weigh only 4.2g.

Printable camera mount file.

FPV Camera

  • Color: Black
  • Lens: 2.1mm
  • Image Sensor: 1/3" CMOS Sensor
  • Horizontal Resolution: 1200 TVL
  • TV System: NTSC (optional)
  • Image: 16:9
  • Synchronization: Internal
  • Electronic Shutter PAL: 1/50~100,000; NTSC: 1/60~100,000
  • S/N Ratio: >52dB (AGC OFF)
  • Video Output: CVBS
  • Min. Illumination: 0.001Lux@F1.2
  • Auto Gain Control: YES
  • BLC: YES
  • WDR: Global WDR
  • DNR: 2 DNR
  • Dimensions: 14mm*14mm*16mm
  • Wide Power Input: DC 3.3-9V
  • Work Temperature: -20℃~+60℃
  • Work Humidity: 20%~80%
  • Weight: 4.1g (Camera + VTX)

Video Transmitter

  • Feature: TBS SMART OSD
  • Frequency Band: 5362~5945MHz
  • Channel Customer: 48
  • Modulation Type: FM
  • Channel SEL.: Touch Switch
  • Channel Indicate: CH1~CH8 Channel indication with 8LEDS and A~F frequency group Indicate with 6 LEDS
  • Transmit Power: 13±1dBm
  • Frequency Control: PLL
  • All Harmonic: Max -50dBm
  • Frequency Stability: ±100KHz (Typ.)
  • Frequency Precision: ±200KHz (Typ.)
  • Channel Carrier Error: 1dB
  • Antenna Port: 50 Ω
  • Power Consumption: 140±20MA@5V DCIN
  • Supply Voltage: 2.9-5.5V
  • Operating Temperature: -10℃~+60℃
  • Profile Dimension: 15mmx14mm

FPV REGULATORY NOTICE

The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. MINDS-i cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
